Unit 3: Central Processing Unit


Q1. What is a microprocessor?

Ans:

The microprocessor is the main part of a computer system which is also known as its brain. It is a VLSI circuit that contains thousands of complex circuits that are used to generate control signals to execute instructions. Microprocessor consists of ALU, CU, Registers, Cache, and Buses.


Q2. What is the function of ALU in a computer?

Ans:

The Arithmetic Logic Unit is the part of the microprocessor where the actual execution of instructions takes place. It consists of two parts Arithmetic Unit and Logic Unit.

Q3. What is the function of ALU?

Ans:

The Arithmetic Logic Unit is the part of the microprocessor where the actual execution of instructions takes place. It is connected with two registers Data Register and Accumulator. ALU receives input from the Data Register (and from the Accumulator if there are two inputs), and stores results in the Accumulator.


Q4. What is the function of the Control unit in the computer?

Ans:

The control unit directs and coordinates the activities of all parts of the computer system i.e. I/O, Memory ALU etc. It uses timing and control logic to generate signals.

Q5. Define the bus and name its types.

Ans:

A bus is a group of parallel wires that transmits binary information amongst various parts of a computer system i.e. I/O, Memory, and Processor.
There are three types of buses
Data Bus, Control Bus, and Control Bus

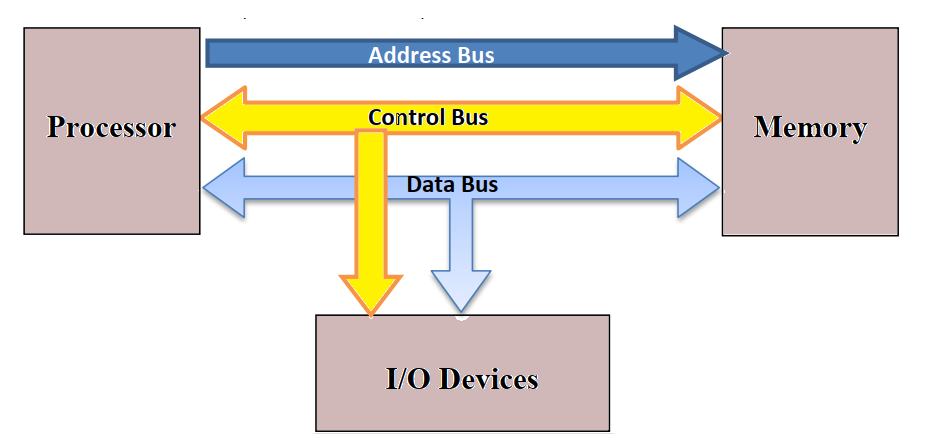

Figure 1. Block Diagram of Busses.


Q6. What is the purpose of the control bus?

Ans:

The control bus carries control signals from the control unit to all other parts. It is a bi-directional bus with having size of 8-16 bits. An 8-bit control bus can support 28 instructions.



Q7. Define the address bus.

Ans:

Address bus carries address from processor to memory. It is a uni-directional bus having a size of 16-32 bits. A 16-bit address bus can point to 216 Memory locations.

Q8. What is the purpose of the data bus?

Ans:

Data bus transfers data among various parts of the computer i.e. I/O, Memory, and Processor. It is a bidirectional bus having a size of 32-64 bits. A 32-bit data bus can carry 4 bytes of data at a time.

Q9. Define register.

Ans:

Registers are the smallest and fastest memory devices found inside the microprocessor which hold the data and address temporarily and pass to other parts of the processor or memory. Some commonly used registers are PC, DAR, D, A, IR, etc.

Q10. Define General Purpose and Special Purpose Registers.

Ans:

General Purpose Registers: These registers can store data as well as addresses. These are used for arithmetic data movement. E.g. Accumulator, data, counter, and base registers.

Special Purpose Registers: These registers hold the state of the program and are used by SU to control the operations of the CPU and by OS to control the execution of programs. E.g. PC, IR, MAR, etc.

Q11. What is the purpose of a PC?

Ans:

Program Counter is a special purpose register that stores the address of instruction next to be executed.

Q12. What is the purpose of DAR (MAR)?

Ans:

Memory Address Register (or Data Address Register) is a special purpose register that holds the address of data that is to be read from memory.

Q13. What is the purpose of DR?

Ans:

The data Register is a general-purpose register that provides input to ALU for processing.

Q14. What is the purpose of IR?

Ans:

An instruction Register is a special-purpose register that holds the instruction just fetched from memory. It then passes this instruction to the instruction decoder for further processing.

Q15. What is the purpose of an Accumulator?

Ans:

The accumulator is a general-purpose register that holds the output coming from ALU after processing. If required, it also provides input to ALU.

Q16. What is the use of MBR?

Ans:

Memory Buffer Register temporarily stores the data just read from memory or to be written to memory.

Q17. Differentiate between General Purpose and Special Purpose Registers.

Ans:

These registers can store data as well as address

These registers hold the state of the program

These are used for arithmetic data movement

These are used by CU to control the operations of the CPU and by OS to control the execution of programs

E.g. Accumulator, data, counter, and base registers

E.g. PC, IR, MAR, etc.


Q18. Define Cache memory.

Ans:

The cache is a small but high-speed memory that stores the active portion of memory that is frequently required for processing.

Q19. What is meant by instruction code?

Ans:

A set of bits that indicates some microprocessor operation is known as an instruction or instruction code. An instruction comprises of two parts as follows:
  1. Operation Code (OP Code)
  2. Operand
There are three types of microprocessor instructions:
i. Data transfer instructions
ii. Data processing instructions
iii. Program control instructions

Q20. Name the types of instructions.

Ans:

There are three types of microprocessor instructions
iv. Data transfer instructions
v. Data processing instructions
vi. Program control instructions

Q21. What is data transfer instruction?

Ans:

Data transfer instructions are used to transfer data from one part to another. Data is transferred generally between two registers or between the register and memory. e.g. MOV, LD, XCHG

22. Define the purpose of following data transfer instructions?

Ans:

MOV (Move): It moves data from one register to another, from memory to register, or from register to memory. Syntax MOV A,B

LD (Load): It loads the contents of memory to register. Syntax LD A,13

XCHG (Exchange): It exchanges the values of two registers. Syntax XCHG A,B

STO (Store): It stores the values from registers to memory. Syntax STO A

Q23. What is data processing instruction?

Ans:

Data processing instructions are used to perform arithmetic and logic operations on data. E.g. ADD, SUB, MUL, DIV, AND, OR, NOT, etc.

Q24. Define the purpose of following data processing instructions?

Ans:

ADD: It adds two values. Syntax ADD A,B
SUB: It subtracts one value from the other. Syntax SUB A,B
MUL: It multiplies two values. Syntax MUL A,B
DIV: It divides one value by another. Syntax DIV A,B
AND / OR / NOT: It performs logical AND OR or NOT operations

Q25. What are program control instructions?

Ans:

Program control instructions control the order of execution of instructions within a program. E.g. JMP, LOOP etc.

Q26. Define the purpose of following data transfer instructions?

Ans:

JMP: It transfers the control from a normal sequence to some other instruction.

LOOP: It repeats instructions for a given number of times.

Q27. What is the operation code?

Ans:

Operation code is the part of a computer instruction that specifies the operation to be performed by the microprocessor.

Q28. Define instruction formats.

Ans:

The way in which a computer instruction is written is known as instruction format. It specifies the number of bits used for op-code or operands. A computer may have a variety of instruction formats. A simple instruction consists of 16 bits. There are three types of instruction formats:
i. Zero Address instruction
ii. One Address instruction
iii. Two Address instruction

Q29. How many types of instruction formats are there?

Ans:

There are three types of instruction formats
i. Zero Address instruction
ii. One Address instruction
iii. Two Address instruction

Q30. What is the advantage of using address mode in an instruction?

Ans:

The main advantage of using address mode in an instruction is that a large number of memory locations can be accessed.

Q31. Define Zero-address instruction.

Ans:

Zero address instruction requires only an op-code and does not need an operand or operand address. E.g. STOP


Q32. Define One-address instruction.

Ans:

One address instruction requires an op-code and only one operand or operand address. E.g. JMP

Q33. Define Two-address instruction.

Ans:

Two-address instruction requires an op-code and two operands or operand addresses. E.g. ADD

Q34. Define the instruction cycle.

Ans:

The instruction cycle is the basic operation cycle of a computer to execute various instructions. It defines the steps in which a processor receives an instruction from memory and executes it. It has three steps Fetch, Decode, and Execute.



Q35. What do mean by CISC?

Ans:

CISC stands for Complex Instruction Set Computer. It is the traditional architecture of the CPU that supports a large variety of instructions. These instructions may have various lengths, formats, and address modes and require complex circuitry to decode. CISC is complex because instructions are used at the hardware level. Examples of CISC processors are the Intel 486 and Pentium series.


Q36. Define RISC.

Ans:

RISC stands for Reduced Instruction Set Computer. It is the modern architecture of the CPU that supports the same size of instructions and does not use indirect address mode. Its instructions are very simple and execute very fast. RISC CPUs use simple circuitry to decode instructions so are cheaper and easy to manufacture. Examples of RISC processors are IBM PowerPC, Sun SPARC, mobile phones and tablets, etc.

Q37. Differentiate between CISC and RISC architectures.

Ans:

CISC

RISC

CISC instructions utilize more cycles

RISC instructions utilize fewer cycles

CISC has very complex instructions

RISC has simple instructions

Execution of CISC instructions is slower

Execution of RISC instructions is faster

CISC has more instructions

RISC has fewer instructions

CISC uses both direct and indirect address modes

RISC uses only direct address mode

CISC is generally used in computers

RISC is generally used in mobile phones, tablets, etc.



Q38. Compare Intel P-IV and AMD Athlon processors.

Ans:

Intel Pentium-IV processor

AMD Athlon processor

High clock speed i.e. 1.7 to 3.0 GHz

Lower clock speed i.e. 1.4 to 2.33 GHz

Bus width is 32 to 64 Bits

Bus width is also 32 to 64 Bits

Cache size is 256 KB to 1 MB

Cache size is 256 KB to 512 KB

Uses both CISC and RISC architectures

Uses only RISC architectures

Has 20 steps execution process

Has 1 steps execution process

Uses generally have 478 pin sockets

Uses generally 462 pin sockets


Q39. Draw a labeled diagram showing the arrangement of buses and registers within the microprocessor.
OR
Label the following diagram


Ans:




************************************

************************************
